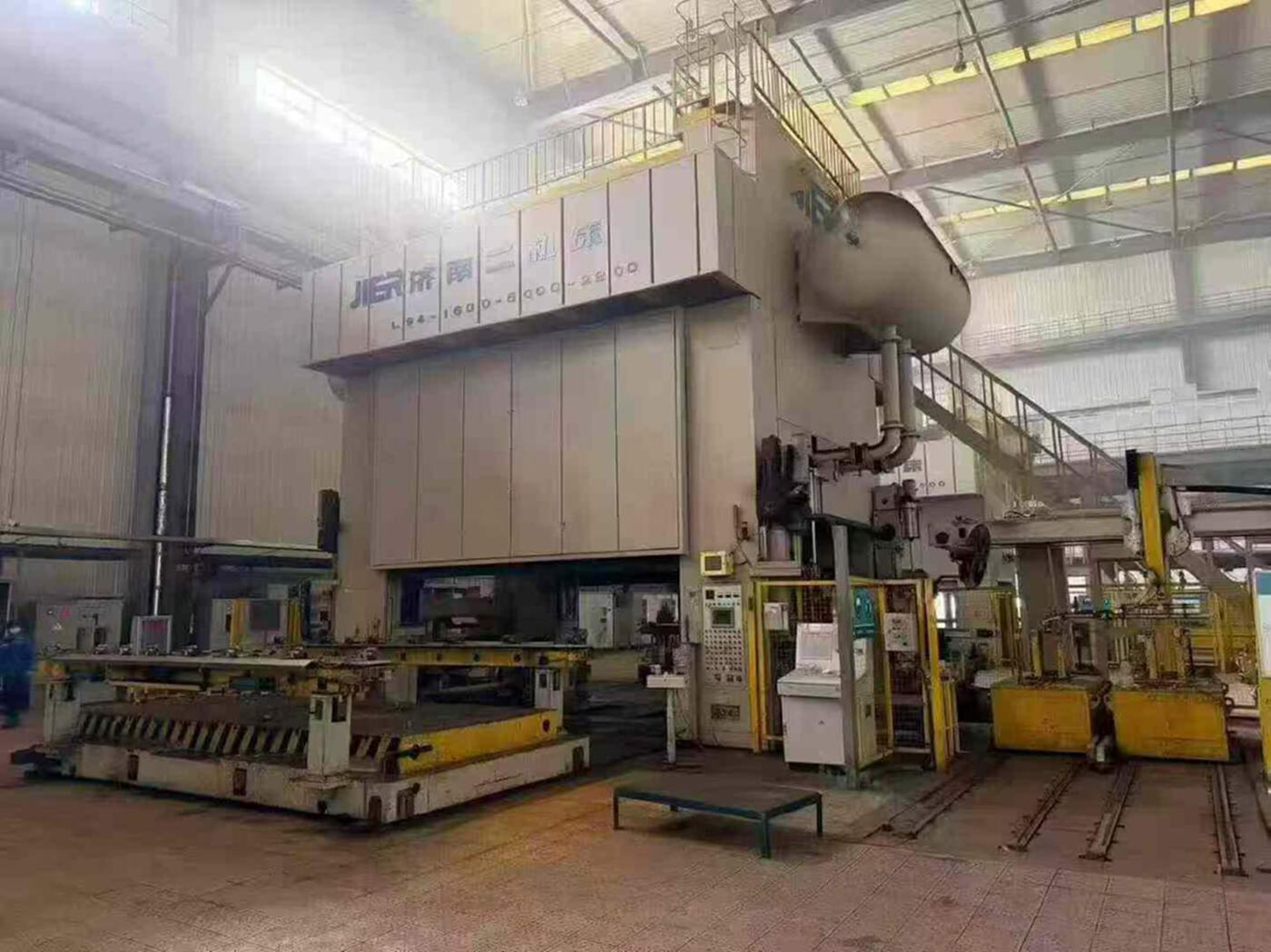

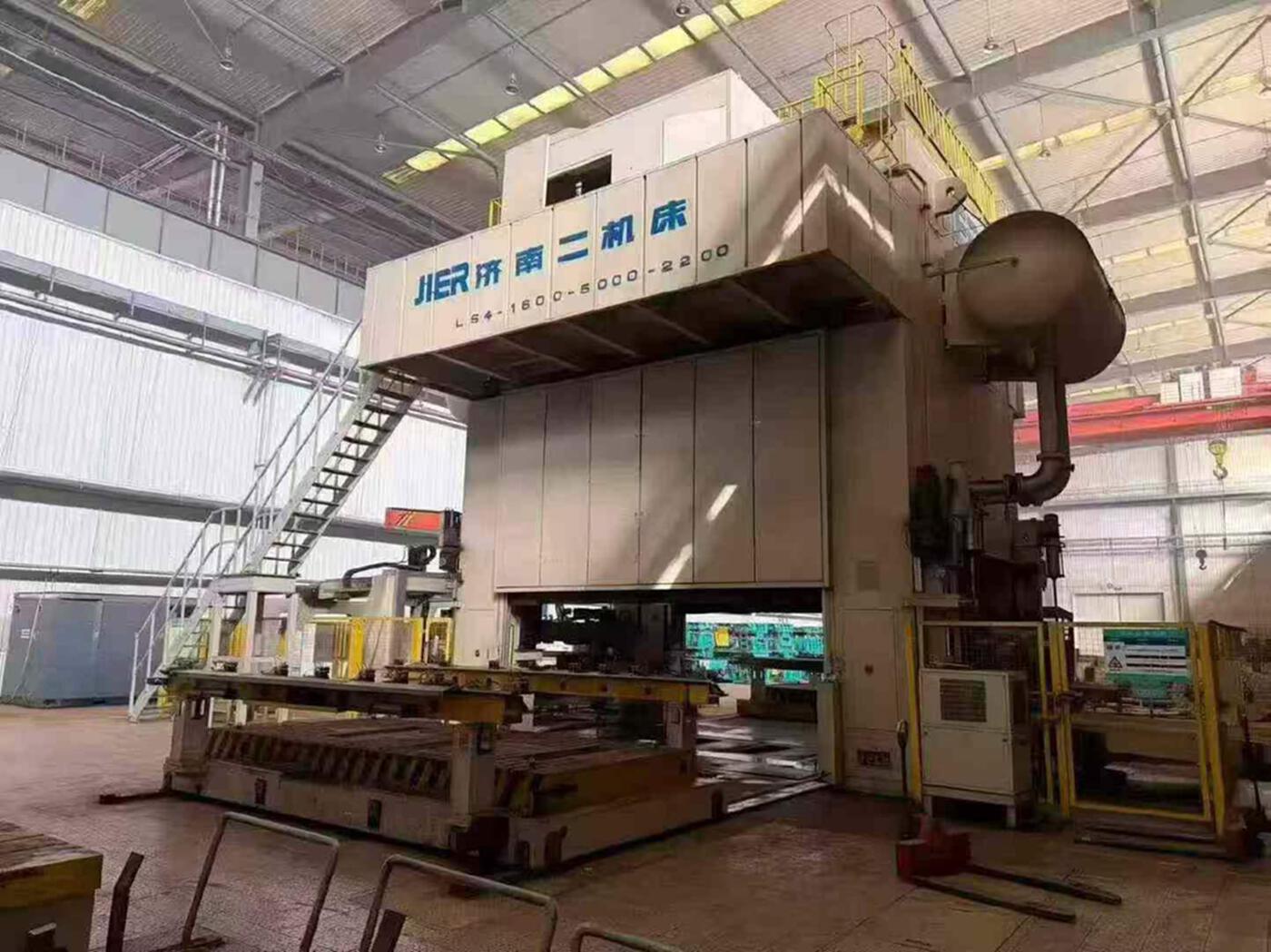

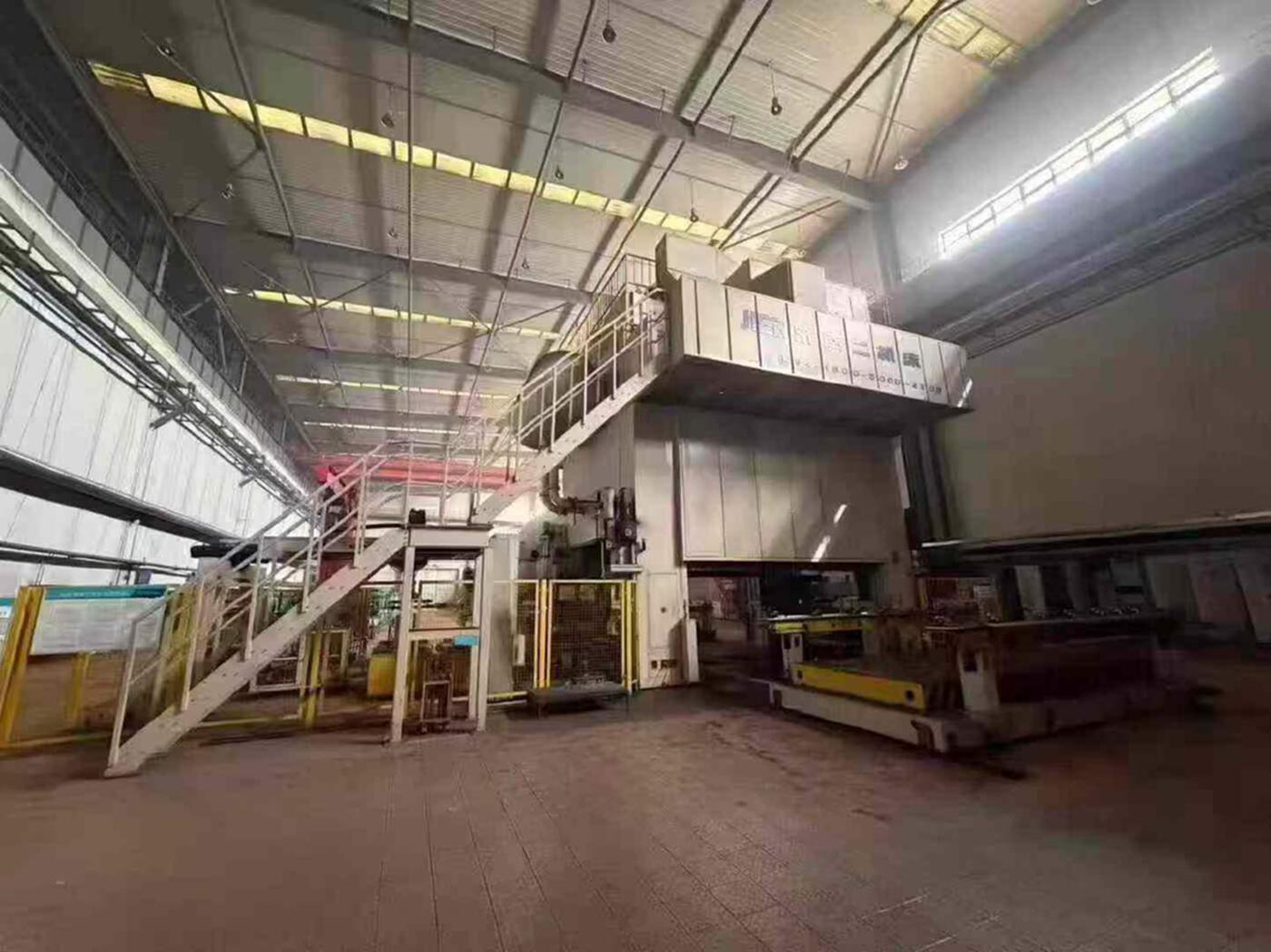

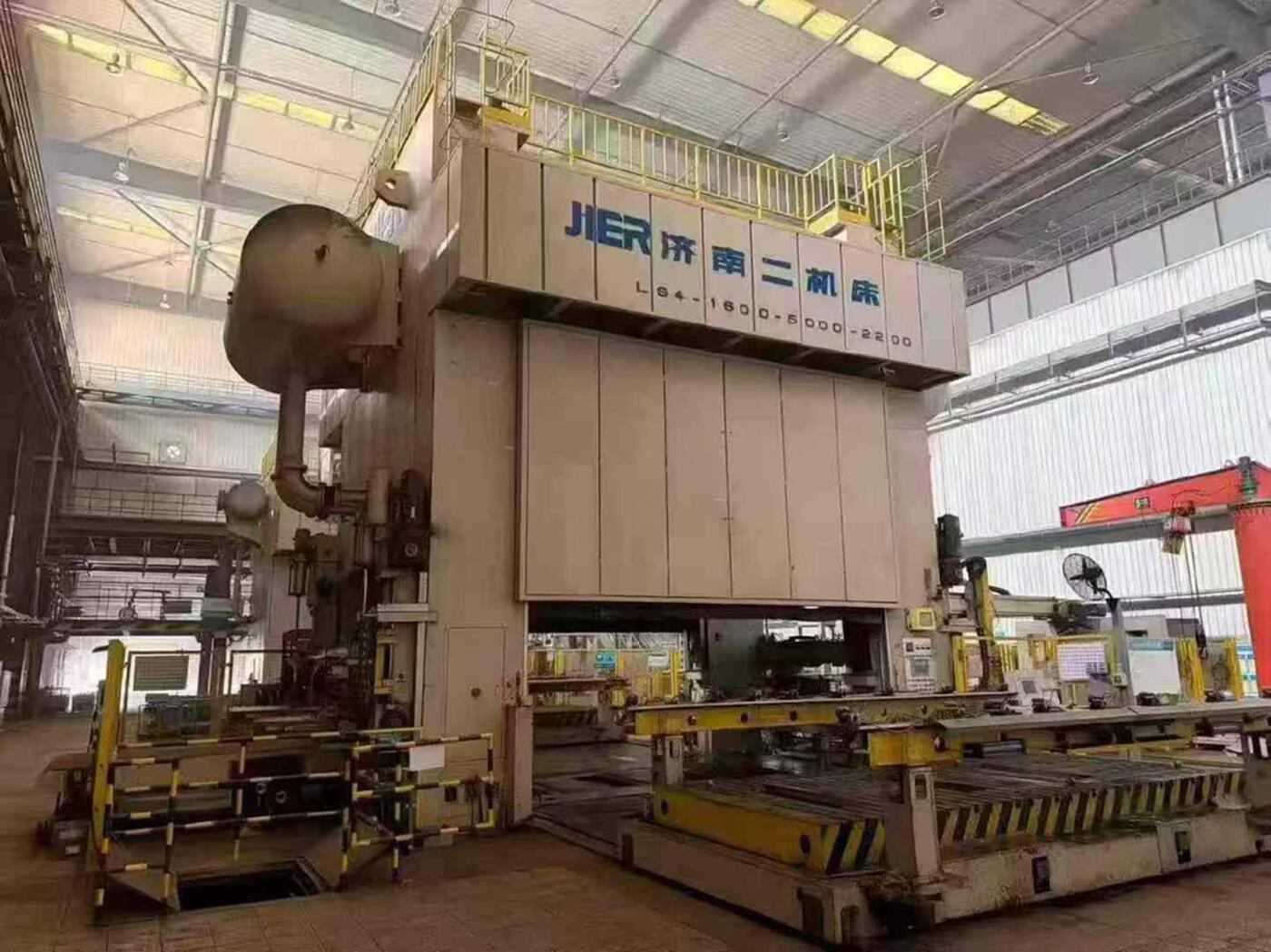

We are selling the LS4B-1600A closed four-point multi-link press produced by Jinan No.2 Machinery (JIER)

LS4B-1600A closed four point multi link press produced by Jinan Second Machine Tool Group Co., Ltd. (JIER)

📊 Core technical parameters

Parameter value

Nominal force 16000 kN (approximately 1600 tons)

Nominal force stroke of 13 millimeters

Slide stroke 863.6 millimeters

Slide stroke frequency 8-24 times/minute

Adjust the travel frequency 3-5 times/minute

Maximum mold height 1200 millimeters

Adjustment of mold height by 300mm

Table size (left and right x front and back) 5000 x 2200 millimeters

Stretching pad force 1250 kN

The effective stroke of the stretching pad is 0-250 millimeters

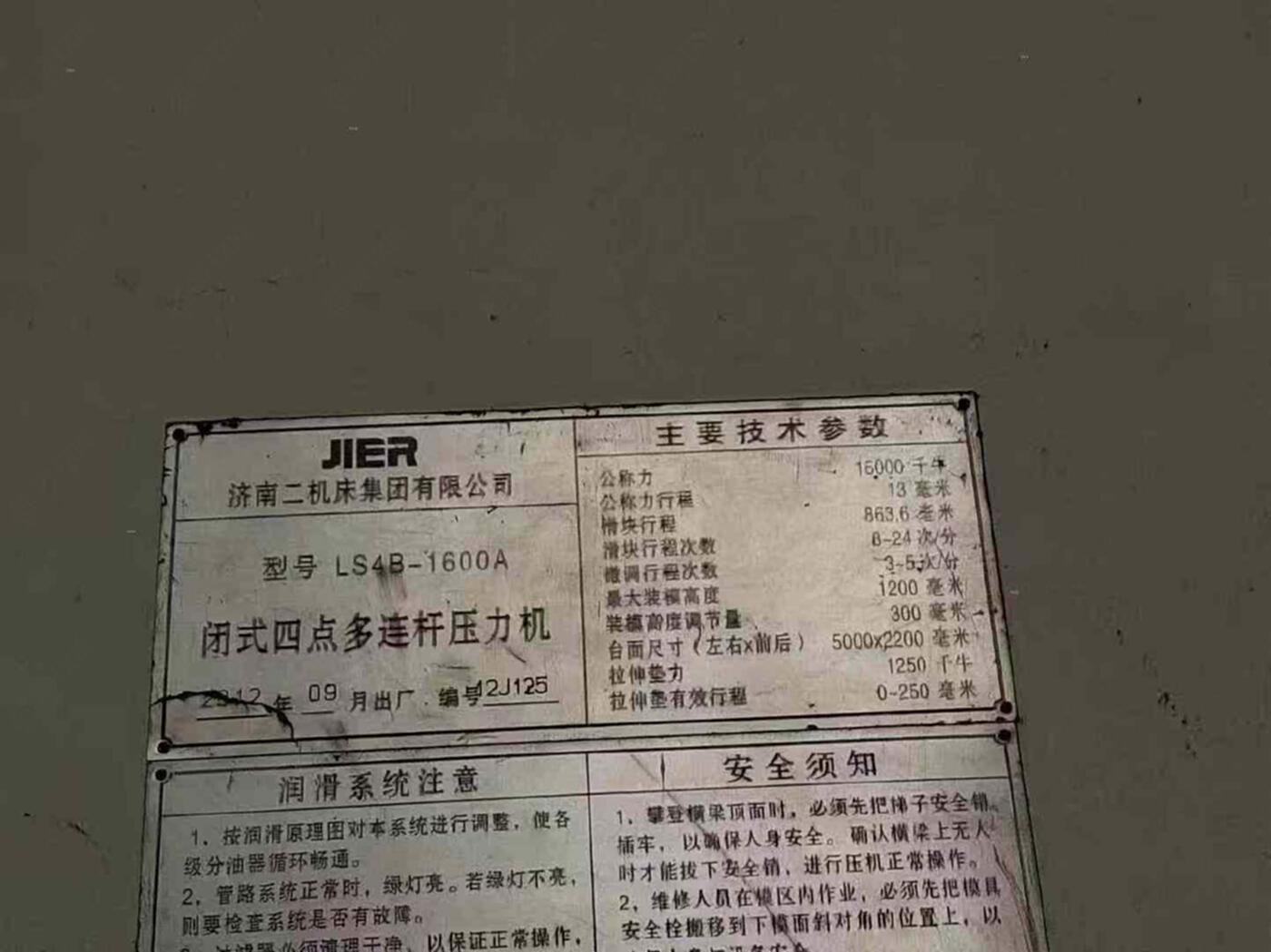

Factory information: manufactured in September 2012

💡 Equipment characteristics and purposes

Structural advantages: Closed four point multi link transmission structure, eight sided guide rail guidance, high rigidity and high precision, can achieve large stroke deep stretching, and adapt to complex body covering processes.

• Process adaptation: Equipped with stretching pads, it can complete multiple processes such as deep drawing, forming, and shaping, and is widely used in stamping production lines of automotive OEMs.

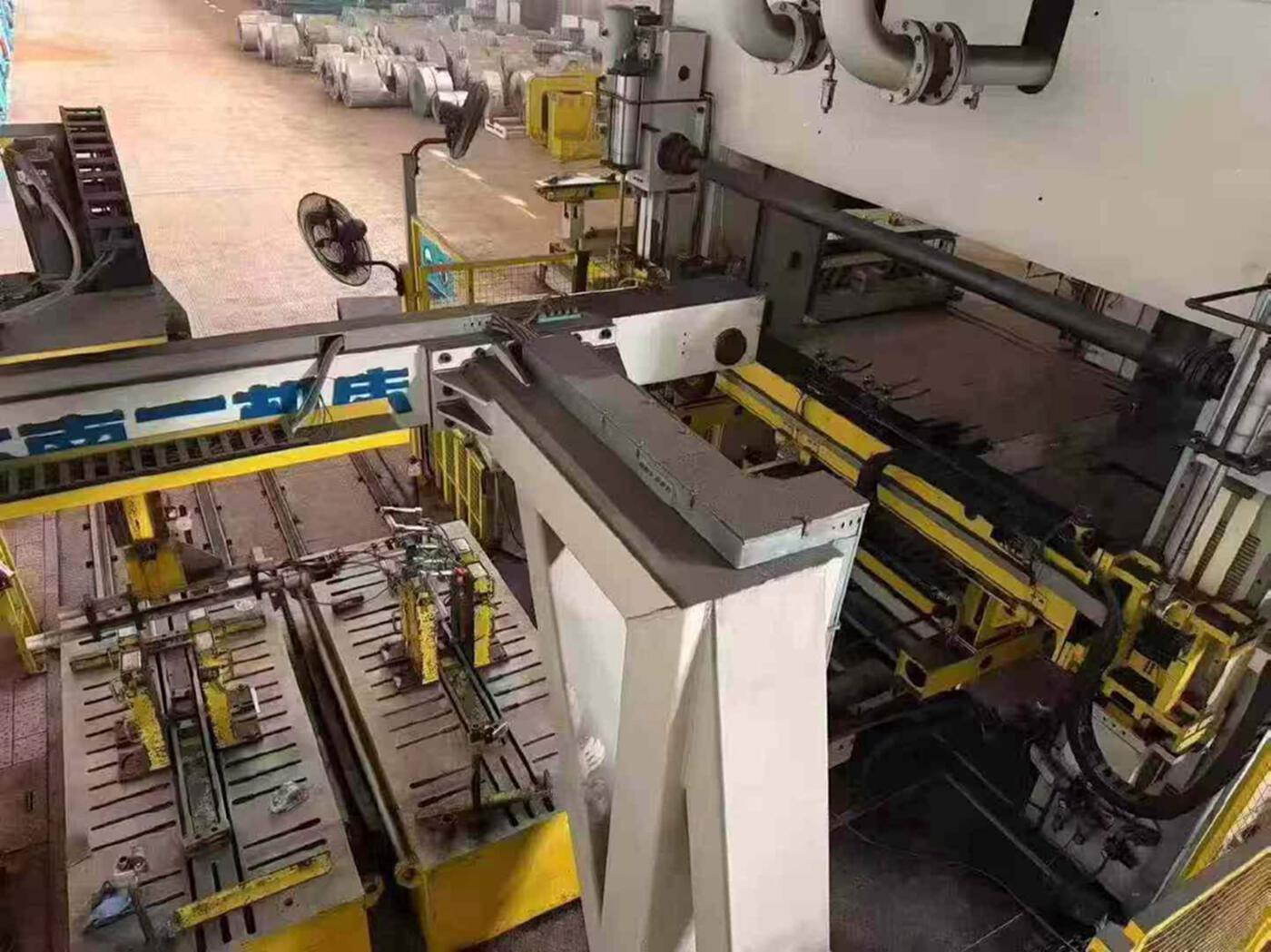

Efficiency performance: The slider stroke can be adjusted within a wide range, balancing production pace and molding quality, and supporting automated linkage production.

Brand background: Jinan Second Machine Tool is a leading domestic enterprise in heavy-duty forging equipment. This model is its classic multi link press product, with mature technology and wide market applications.
