second-hand LW450 horizontal screw discharge sedimentation centrifuge from Jinan Wanxingyuan Environmental Protection Technology Co., LTD

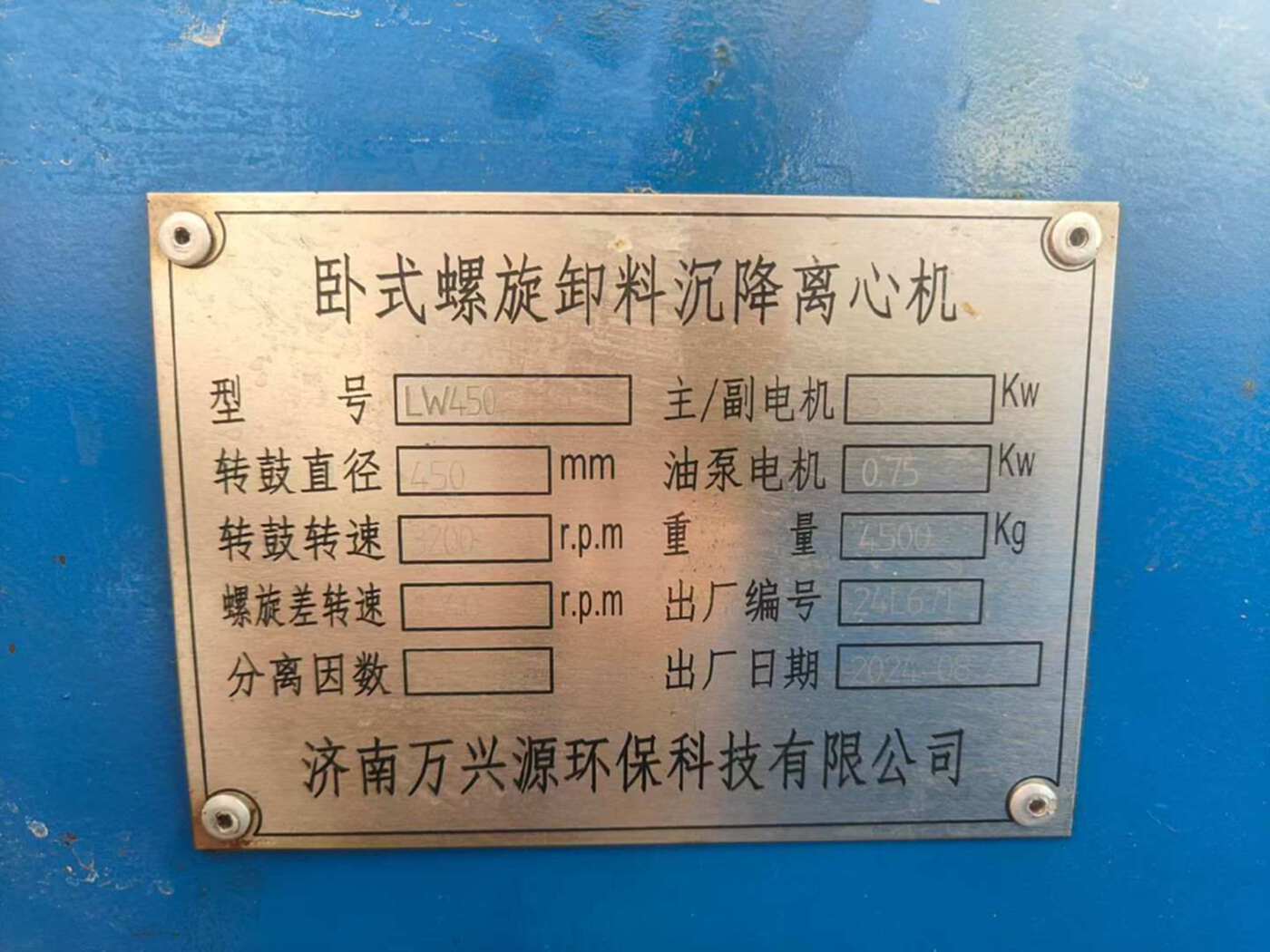

1、 Basic parameters of equipment

Equipment model: LW450 horizontal spiral discharge settling centrifuge

Manufacturer: Jinan Wanxingyuan Environmental Protection Technology Co., Ltd

Factory time: August 2024

Drum diameter: 450mm

Drum speed: 3200r/min

Oil pump motor: 0.75kw

Whole machine weight: 4500kg/set

Configuration: Circulating oil cooling device, 2205 duplex steel material, PLC fully automatic control cabinet

Equipment status: Two complete sets have arrived, with zero wear on the drum and almost no use, in a nearly new machine condition

2、 Material and Core Configuration

The material contact area is made of 2205 duplex stainless steel, which is resistant to acid and alkali, chloride ion corrosion, and has wear resistance far exceeding ordinary 304 and 316L stainless steel, suitable for separating corrosive materials.

Equipped with a circulating oil cooling system, the main engine operates continuously for a long time with low temperature rise, suitable for 24-hour uninterrupted production.

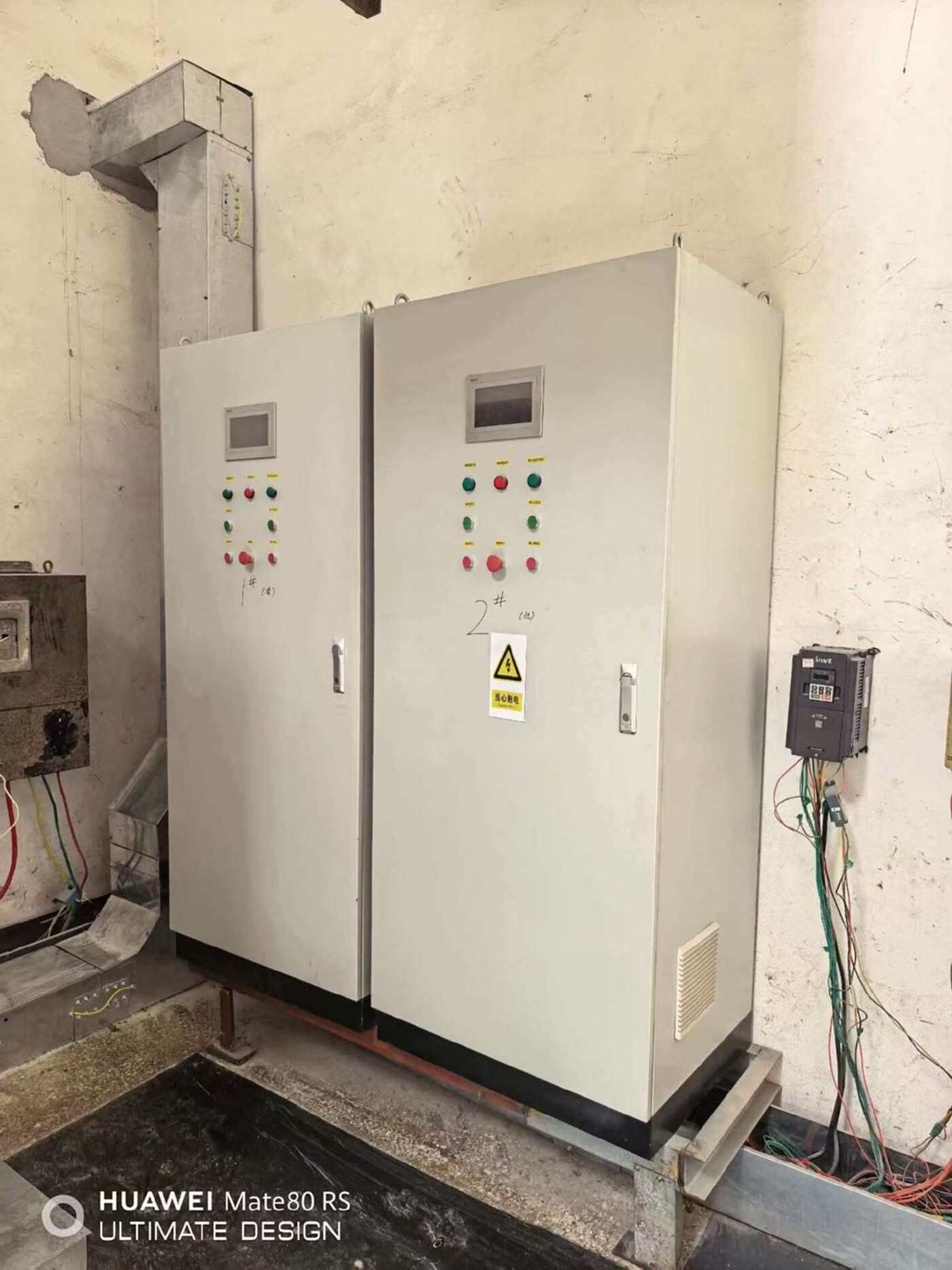

Independent PLC fully automatic control cabinet, touch screen operation, automatic speed regulation and differential adjustment, visualized operation data, one click start stop, easy operation, reducing manual duty.

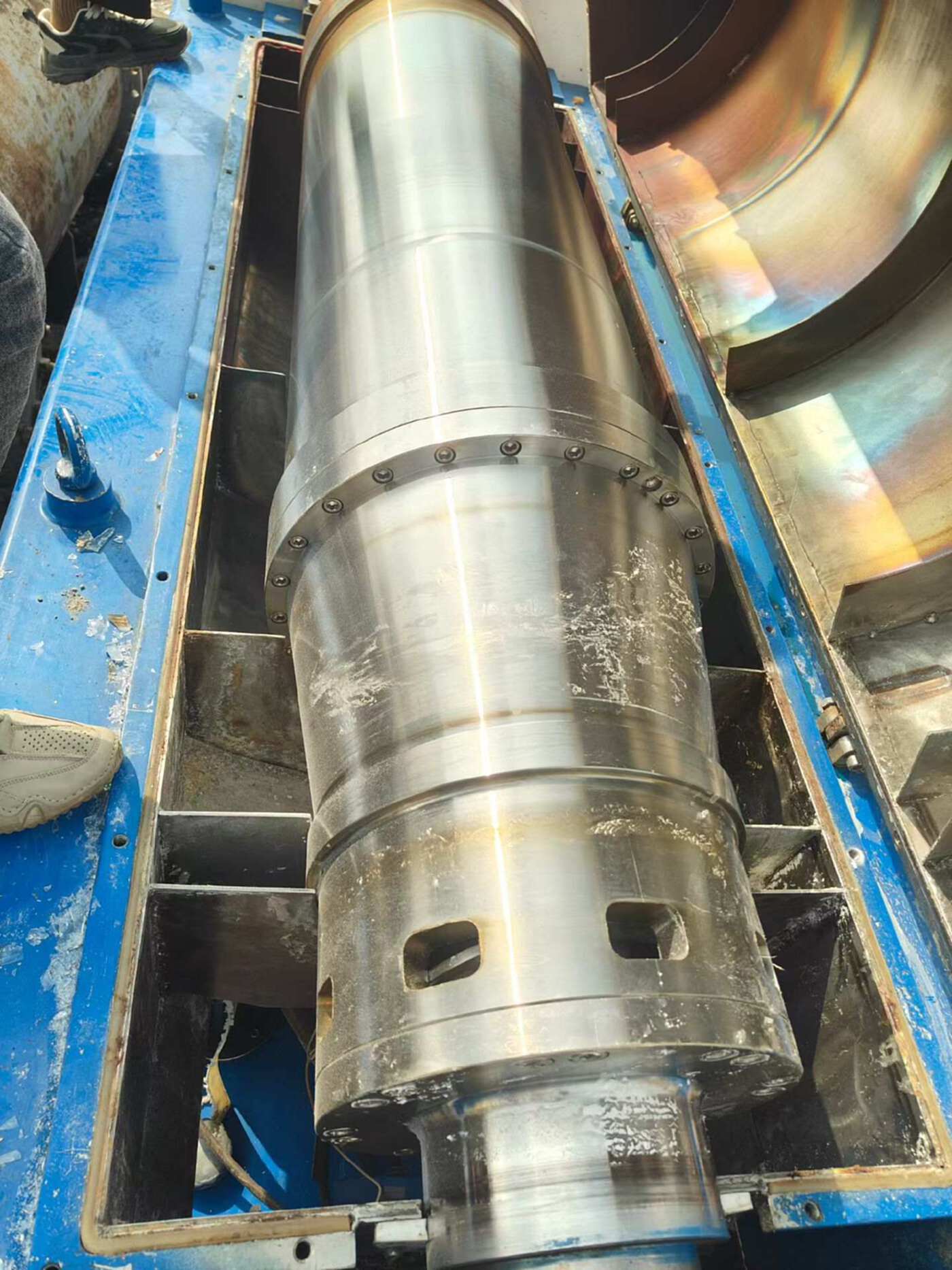

The drum and screw have zero internal wear, no scratches, and no corrosion. The core rotor is dynamically balanced and operates at high speeds without shaking or abnormal noise.

3、 Equipment condition and working condition

The quasi new machine, manufactured in 2024, has a very short service life and was photographed on site. The drum was disassembled and the interior was intact without wear, and the entire machine had no major repairs, welding repairs, or deformations.

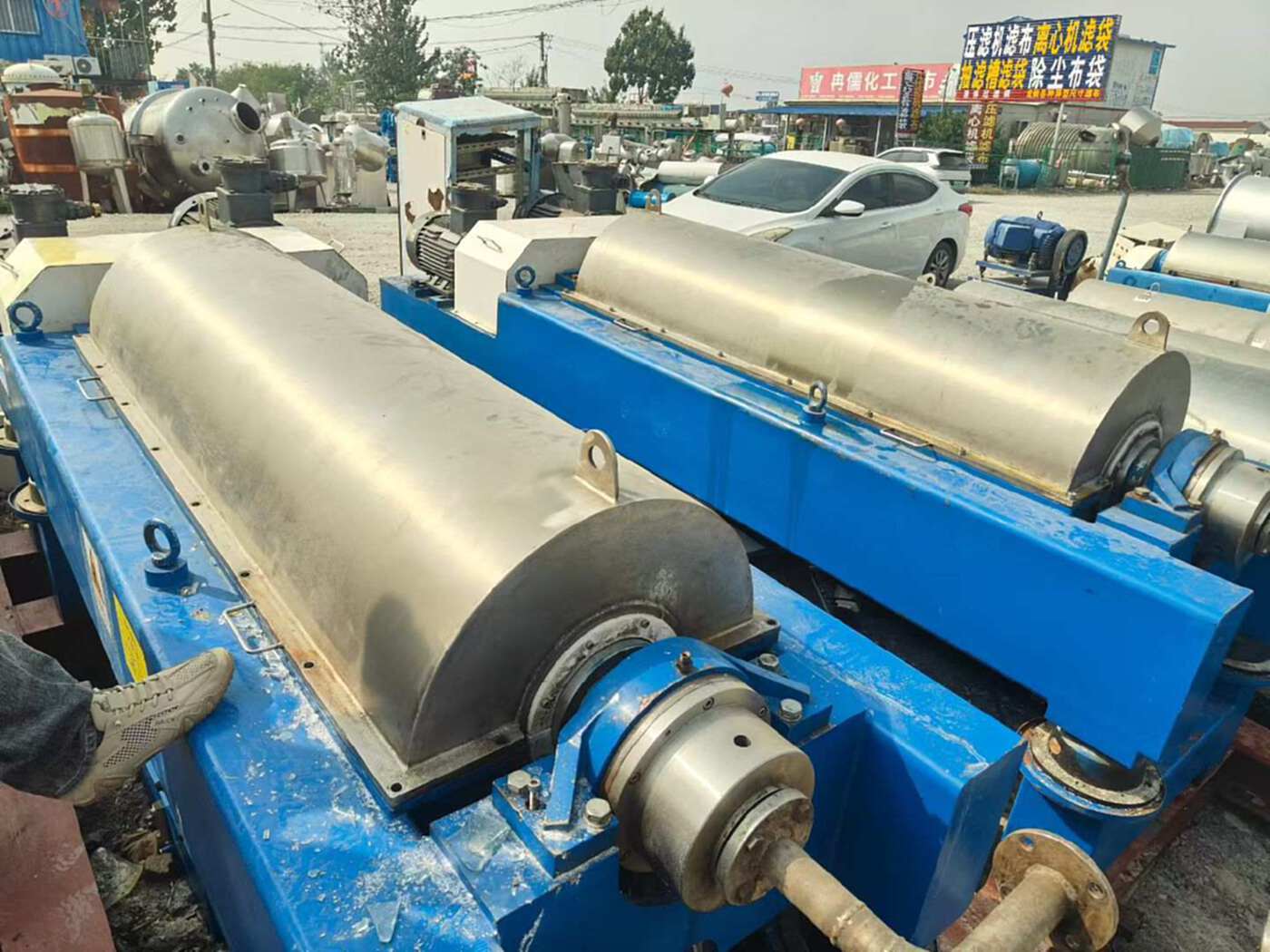

The complete set of accessories is complete, and the oil cooling system, control cabinet, and motor are all in good condition. They have been transported to the freight yard, cleaned, and powered on for on-site testing.

Without the need for large repairs or replacement parts, it can be put into production by connecting the pipeline.

4、 Applicable industry scenarios

Suitable for continuous separation of solid and liquid phases, widely used for:

1. Dehydration of chemical wastewater, mining tailings, acid washing wastewater, and sludge

2. Kitchen materials, protein extraction, and separation of animal and plant waste liquids

3. Separation of salt chemicals, acidic materials, and corrosive materials containing chloride ions

4. Continuous dehydration treatment of oilfield mud and various industrial suspensions
